SHPA Air Driven Torque Wrench Pumps

Working Pressure 700 bar
High Flow 2- stage pump unit
Compact and Light Weight

» The Single valve block can be replaced by component FP-4,thereby allowing 2 or 4 tools to be driven simultaneously
» Three stage with air drive
» Supporting continuous operation with steel frame
» 100mm diameter gauge ,aluminium oil tank with oil level indicator
» Variable pressure adjustment between 1000~10000 psi
» Designed for continuous operation
» Supplied with 5 mtr twin hoses and quick connect couplings suitable for BXD and BSD torque wrenches

Technical Data :

TYPE	SHPA-2	SHPA-4
Working Pressure	70 MPa	70 MPa
Drive	Air	Air
Air Pressure	3.4 m 3/min	3.4 m 3/min
Power	1.7HP	1.7HP
Tank Capacity	5L	5L
Flow Rate	98LPM@100BAR-.8LPM@700BAR	98LPM@100BAR-.8LPM@700BAR
Oil Cooler	Yes	Yes
Weight	25kg	25kg
Pill Outputs	4x1/4"BSP	8x1/4"BSP
Air in	6~8 bar	6~8 bar
LxWxH(mm)	377x282x542	377x282x542

TORQUE WRENCH PUMP ACCESSORIES

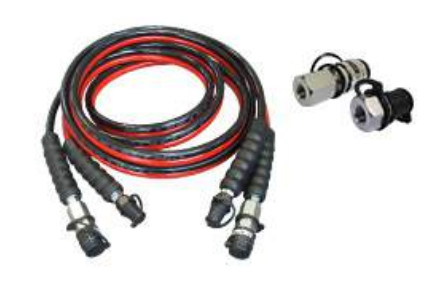

» High quality hydraulic torque wrench bonded twin hose sets
» Maximum working pressure of 700 bar with 4:1 safety factor
» Ergonomically designed protective, strain reliever hand grips on both ends

Hose length up to 100 meters
Supplied with quick connect couplings
Working pressure 700 bar

Model	Photograph	Max operating Pressure (Mpa)	Hose end		Hose Length (M)
			End one	End two
BH64 series twin hydraulic hose		72	1/4"NPT	1/4"NPT	6 9
BH74 series hydraulic hose		72	1/4"NPT	1/4"NPT	6 9
Bh78 series hydraulic hose		100	3/8"NPT	3/8"NPT	1.8 4.5 6
