TORQUE CONTROLLED TUBE EXPANSION SYSTEM (Current based)

SHINGARE Electric Tube Expansion Drive Unit is governed by a separate Electric Control Panel which is adjusted by a simple Digital Display. When the Electrically Driven Motor reaches the desired Torque, the Control unit Mechanism automatically shuts off the Power and on pressing the Reverse Button the Tube Expander retracts out from the Tube The Fully Automatic system ensures the Tube are rolled to maximum Expander retracts out from the Tube. The Fully Automatic system ensures the Tube are rolled to maximum tightness without excessive cold worked stress in Tube Metal which prevents injuring Tube ends or distorting Tube Sheet Ligaments.

Model No	Phase	Supply Voltage Volts	Maximum Current AMPS	Control Panel Suitable for Drives
BTC-23010	Single	230	10	BD-0,BD-1,BD-2TS, BD-3,BM-2M5,BD-3M5, BD-2M25,BD-3M25
BTC-11020	Single	110	20	BD-0L,BD-1L,BD-2L, BD-2TSL, BM-3L,BD-2LM5,BD-3LM5, BD-2LM25,BD-3LM25

Note : Highly Advanced – Micro processor based Torque Control Unit – is also avaibalbe – quote on request.

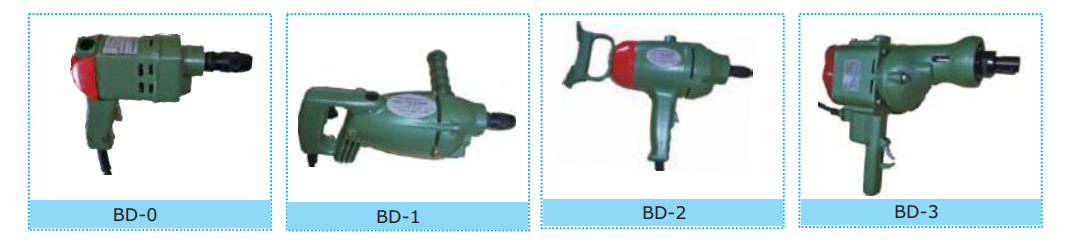

ELECTRICALLY OPERATED DRIVE UNITS FOR CURRENT BASED TUBE EXPANSION MACHINE

FEATURES:

1. It consists of heavy duty motors.
2. Continuous cycle operation vs. Intermittent cycle operation of drives from other manufactures.
3. High torque to weight ratio.
4. Spare parts are easily available worldwide.

Drive Model		No Load Speed R.P.M.	Expansion Range		Full Load Current AMPS		Full Load Torque KGM	Drive Weight Kgs.
230V	110V		S.STEEL TUBE O.D. M.M	COPPER TUBE O.D. M.M.	230V	110V
BD-0 BD-1	BD-0L BD-1L	700 550	6 to 12  10 to 16	8 to 16  13 to 22	1.3  3.4	2.6 6.8	0.36 0.46	2.6 4.1
BD-2 BD-2TS BD-3	BD-2L BD-2TSL BD-3L	560 1380/560 270	16 to 28 16 to 28 25 to 45	19 to 34 19 to 34 38 to 65	2.7 2.75 6.0	8.0 5.5 12.0	1.26 2.2 / 3.0 3.0	7.7 5.4 11.3
BD-2LM5 BD-3LM5	BD-2LM5 BD-3LM5	112 56	25 to 50 25 to 57	38 to 70 38 to100	4.0 6.0	8.0 12.0	3.8 12.0	10.0 16.0
BD-2M25 BD-2LM25	BD-3M25 BD-3LM25	21 11	38 to 63 50 to 104	– –	4.0 6.0	8.0 12.0	31.5 48.0	15.0 19.0
